Pipe squaring machine
Product name: Pipe Squaring machine
Specification Model: LPM1.0
Product Use: It is specially used for high precision flat machining of thin
wall stainless steel pipe end, small volume, light weight,
easy to carry,suitable for field operation needs, improve
work efficiency and welding quality

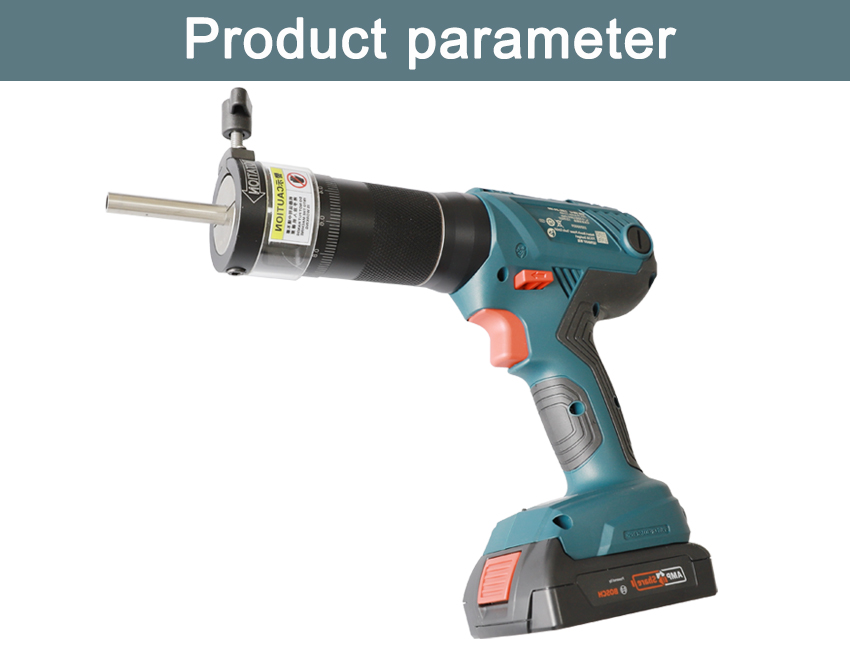

Model parameter | |
Model | LPM 1.0 |
Processing range | 3-25.4mm |
Maximum wall thickness | 3mm |
Blade speed | 350rpm |
Cutting depth | 4mm |
Rechargeable battery capacity | 18V 2.0Ah |
Motor | BOSCH motor |

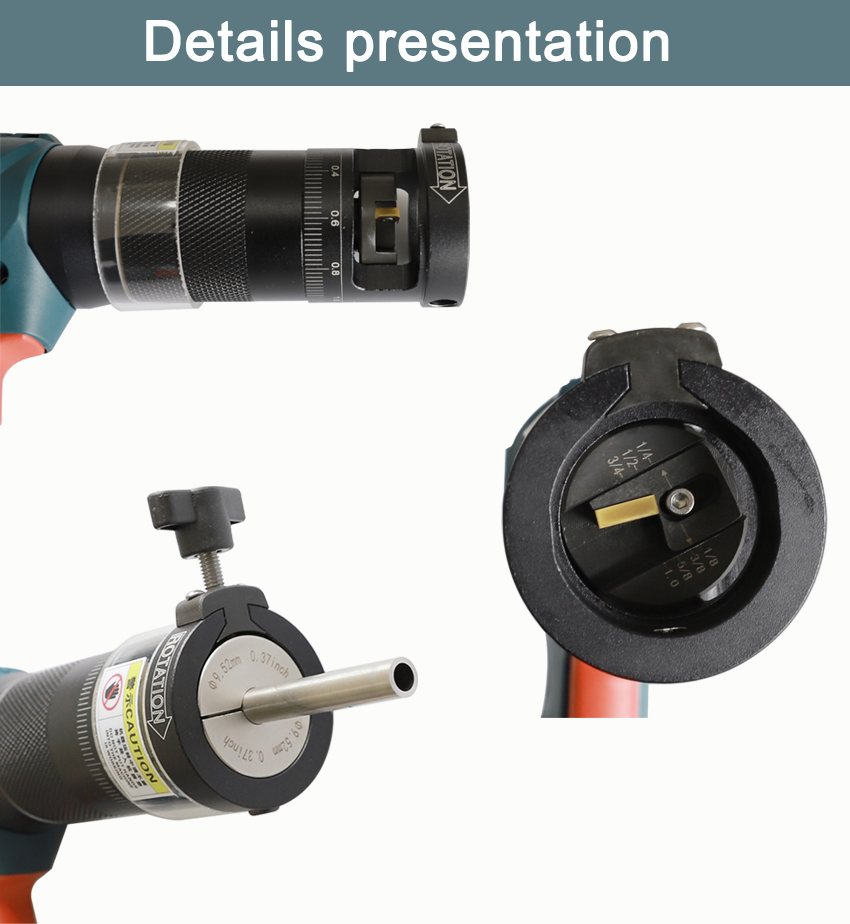

Feature description

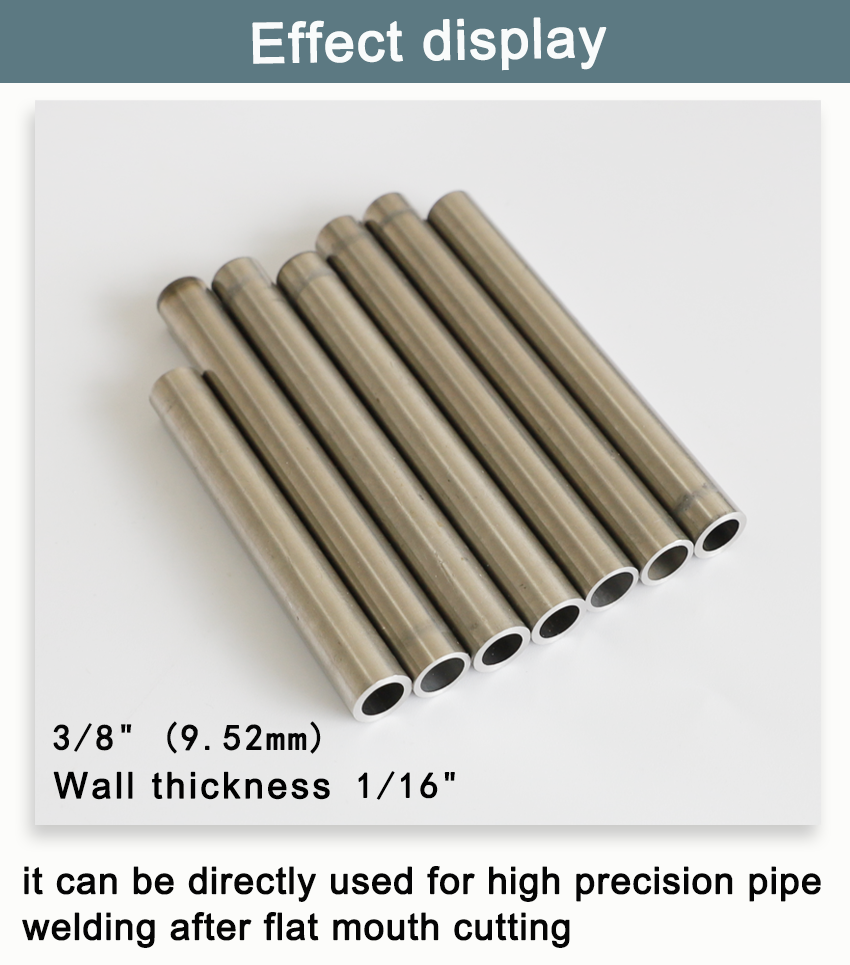

1、Specializing in stainless steel pipe end high precision flat machining
2、End face without any burr, the tube end is perpendicular to the tube axis
3、Compact structure, fixture, tool and pipe installation is convenient, simple operation
4、Millimeter scaleplate cutting feed is used to ensure the highest precision end
face machining quality
5、Compact and portable body, with charging motor and plug-in motor, to meet
different customer needs

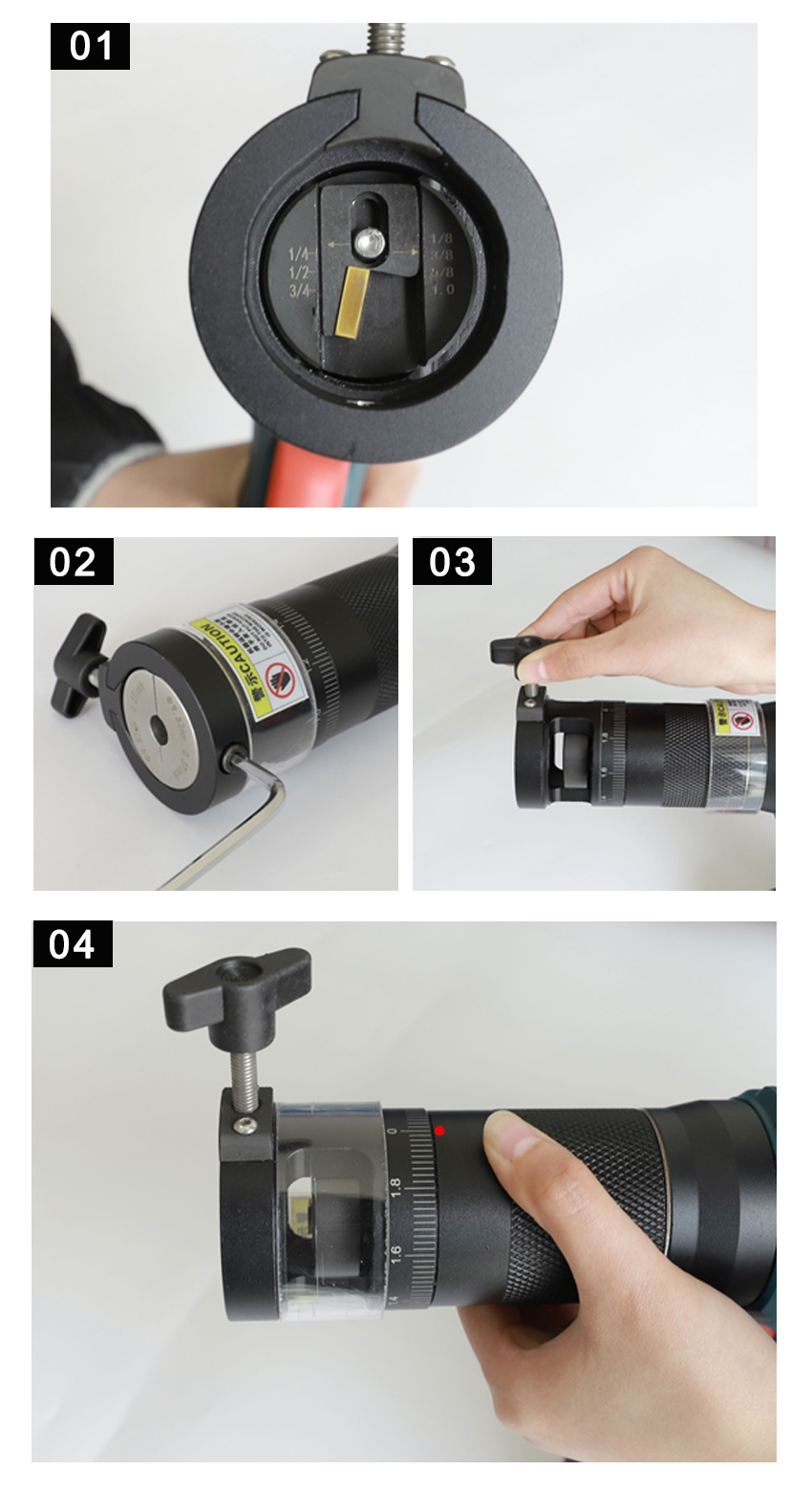

Installation procedure
01、Loosen the screw to move the blade position, and align the marking line on the cutter
pad with the corresponding dimension line on the cutter plate according to the size
of the pipe
02、Screw the screws with the hex wrench
03、Rotate the pressing handle to clamp the pipe
04、After the mark point is aligned with the zero line of the scale ring, one round rotation
of the feed part is exactly 2mm distance away from the flat mouth. Rotate the feed
part for feed cutting in a clockwise direction.
